Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel Or Stainless Tubes | Max Operation Pressure: | 140kg/Cm2 |
|---|---|---|---|
| Min.Operation Pressure: | 3kg/Cm2 | Work Temperature: | -10 ~ + 60 (°C ) |
| Range Of Speed: | 8~300(mm/sec) | Warranty: | 1 Year |
| High Light: | double rod end hydraulic cylinder,heavy duty linear actuator |
||

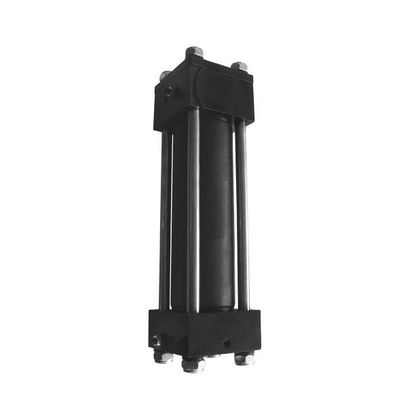

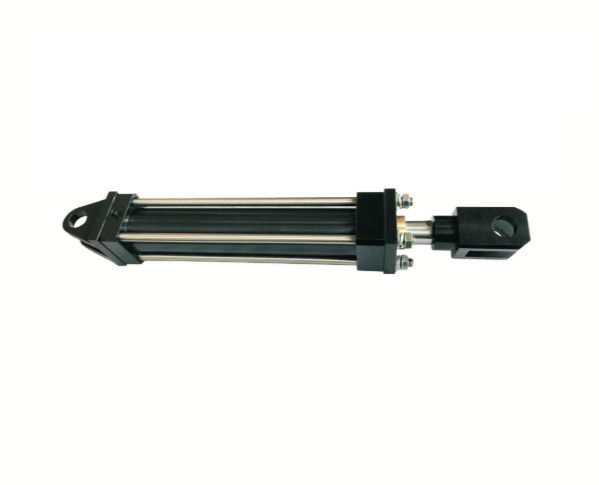

Heavy Duty Hydraulic Cylinder Linear Motor High Performance Sea Ring to Guarantee No Leakage
Feature:
1. Adopt high performance oil seal to guatantee no leakage , long life service.
2. Cylinder cover 45# steel or stainless steel SUS304 ,chromed piston rod , strong and durable structure.
3. Multiple mounting types , which can be customized by clients' requirements.
4. Special hydraulic cylinder sizes can be customized by clients' applications.
Heavy Duty Hydraulic Cylinder Applications:
1. Engineering machine machinery: excavator, loader, bulldozer, road roller, scraper
2. Overweight transportation machinery car crane, port gantry crane, loading and unloading machinery, belt conveyor
3. Mining machinery: rock drilling machine, excavation machine, mining machine, crusher, hoist, hydraulic support
4. Construction machinery: pile driver, hydraulic jack, grader
, agricultural machinery: combine harvesters, tractors, farm implement suspension systems
6. Metallurgical machinery: electric furnace top and electrode lift, rolling mill, press
7. Light industrial machinery: baler, injection molding machine, straightening machine, rubber vulcanizing machine, paper machine"
8. Automotive industry: self-unloading cars, flatbeds, aerial work vehicles, steering gears in automobiles, shock absorbers
9.intelligent machinery: folding arm car loader, digital exercise machine, simulation cockpit, robot
| NO | Part name | QTY | NO | Part name | QTY | NO | Part name | QTY |
| 1 | Piston rod | 1 | 9,11 |
O Gasket |
3 | 18 |
nut |
8 |
| 2 |
Locking nut |
1 | 10 |
Cylinder tube |
1 | 19 |
Spring washer |
8 |
| 3 |
Dustproof seal |
1 | 12 |
Wearing ring |
1 | 20 |
Pulled rod |
4 |
| 4 |
Oil seal for shaft |
1 | 13 |
Piston seal |
2 | 21 |
Half snap ring |
2 |
| 5 |
Gland |
1 | 14 | Piston | 1 | 22 |
Magnet ring |
1 |
| 6 |
Guide sleeve |
1 | 15 |
Nut |
1 | 23 |
Baffle ring |
1 |
| 7 |
Gasket |
1 | 16 |
Spring washer |
1 | 24 |
Rod baffle ring |
1 |
| 8 |
Rod cover |
1 | 17 | End cover | 1 | 25 | Adjustable nut | 1 |
Specification:
|
Bore of cylinder (mm)
|
Φ40
|
Φ50
|
Φ63
|
Φ80
|
Φ100
|
Φ125
|
Φ150
|
Φ180 | Φ200 | |
| Power Fluid | Filtered Oil | |||||||||
| Material of cylinder | Carbon steel STKM-13c/ tainless tubes SUS 304/AL Tube A6063TDS-T5 | |||||||||
| The range of pressure(mpa) | 0.3-7.0 MPA(3-70kg/Cm2) | |||||||||
| The range of speed (mm/sec) | 8~300(mm/sec) | |||||||||
| Range of temperature (°C ) | -10 ~ + 60 (°C ) | |||||||||
|
Cushion stroke(mm) |
25 | 25 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | |
| Length of standard piston (PM) | 30 | 35 | 35 | 50 | 60 | 70 | 60 | 70 | 70 | |
| Piston length when the stroke is between 1501-2500 mm | 60 | 70 | 70 | 80 |
100
|
100
|
100
|
140 | 140 | |
|
Piston length when the stroke is between 2501-4000 mm |
120 | 140 | 140 | 150 | 180 | 180 | 180 | 200 | 200 | |
ORDERing Code
CHOB R D - 63 / 35 * 100 LB + Y
1 2 3 4 5 6 7 8
| 1 | Series |
CMOB: Standard type CMOD:Double Rods type |
| 2 | Magnetic |
Blank: No magnet Z:Magnet |
| 3 | Flxed Cushioning Type | Blank: No cushion D: cushions on both ends F: cushion on head cover B: cushion on end cover |
| 4 | Bore of Cylinder |
Φ40 ,Φ50 ,Φ63,Φ80 ,Φ100, Φ125 ,Φ150,Φ180,Φ200 |
| 5 | Rod |
Standard Φ25 Φ30 Φ35 Φ40 Φ50 Φ60 Φ80 Φ100 Φ100 Max -Φ35 Φ40 Φ50 Φ60 Φ80 Φ100 Φ120 Φ120 |
| 6 | Stroke |
Steel barrel(Φ40-Φ125 ) Max:4m Iron barrel(Φ40-Φ100) Max:2.8m Standard stroke:50,100,150,200,250,300,350,400,450,500,600,700,800,900,1000. |
| 7 | Cylinder Body Accessories |  |
| 8 |
Rod Connecting Accessories |
 |
Remark : The dimensions of the light duty hydraulic cylinder can be customized as customers' requirement.
Pls contact us your customized cylinders.
