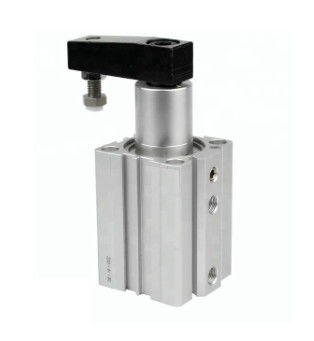

Rotary Pneumatic Air Clamps Automatic Assembly Clamp Double Acting Type

Large Image : Rotary Pneumatic Air Clamps Automatic Assembly Clamp Double Acting Type

Product Details:

Place of Origin:	Dongguan China
Brand Name:	Jiayan
Certification:	ISO9001:2008
Model Number:	QCK

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	poly bag and carton box
Delivery Time:	7 days
Payment Terms:	L/C, T/T, Western Union,PayPal
Supply Ability:	1000 set per week

Contact Now

Detailed Product Description

Material:	Aluminum Alloy	Type:	Standard
Structure::	Rotary Cylinder	Power:	Pneumatic
Maximum Stroke:	15mm	Shaft Diameter::	12mm-63mm
Acting Type::	Double Acting	Working Media:	Cleaned Air
Working Pressure::	0.1-0.9Mpa	Working Temperature:	-5~70℃
Port Size::	M5X0.8	Working Speed::	30~500 Mm/sec
Rotary Strok:	11-15mm	Clamping Stroke::	11-15mm
Highlight:	swing cylinder clamps , pneumatic clamps fixtures

Pneumatic Rotary Clamping Air Cylinder Actuator Automatic Assembly Clamp

Product Specifications

Bore Size(mm)	25	32	40	50	63
Working Type	Double Acting
Working Media	Cleaned Air
Working Pressure	0.15~0.95Mpa
Working Temperature	0~60℃
Working Speed	30~500mm/sec
Rotary Stroke	11mm	13mm		15mm
Down Stroke	11mm	13mm		15mm
Rotation Angle	90° can be customized(0°, 45°, 60°)
Direction of Rotation	Turn left(from right to left)-L; turn right(from left to right)-R
Buffering	Rubber Cushion
Port Size	M5X0.8	M5X0.8
Lubrication	Freely supply

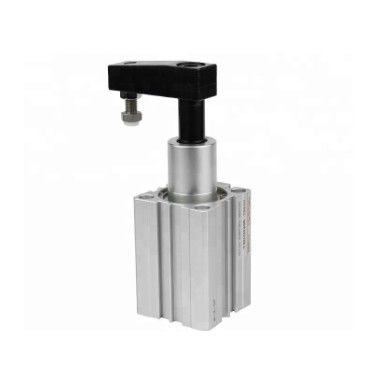

Rotary Pneumatic Air Clamps Automatic Assembly Clamp Double Acting Type
