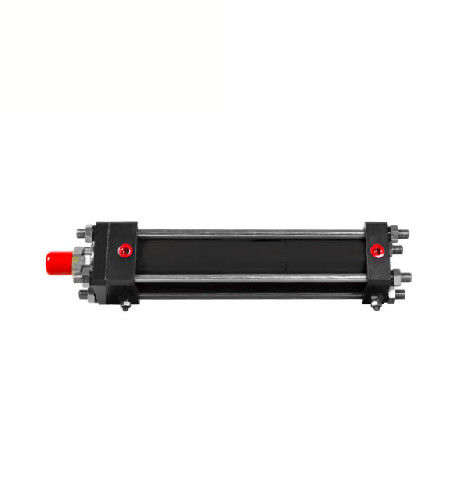

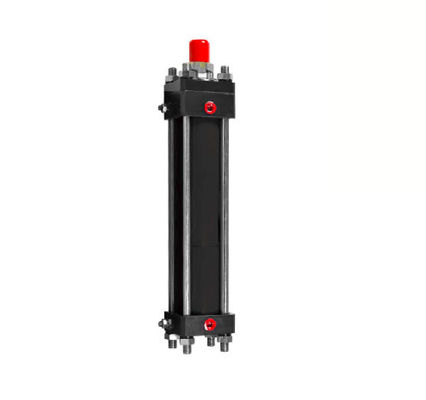

14Mpa Adjustable Cushioning Hydraulic Cylinder Heavy Duty Linear Actuator
Feature:
1. Adopt high performance oil seal to prevent leakage , long life service.
2. Cylinder cover Carbon steel , chrome-plated piston rod , strong and durable ctructure.
3. Multiple mounting types , which can be customized by clients' requirements.
4. Special hydraulic cylinders can be customized by clients' applications.
Heavy Duty Hydraulic Cylinder Applications:
1. Engineering machine machinery
2. Overweight transportation machinery
3. Mining machinery
4. Construction machinery, agricultural machinery
6. Metallurgical machinery
7. Light industrial machinery
8. Automotive industry
9. intelligent machinery
| MO | Part name | QTY | NO | Part name | QTY | NO | Part name | QTY |
| 1 | Piston rod | 1 | 10 |
Cylinder tube |
1 | 19 |
Adjustable nut |
1
|
| 2 |
Locking nut |
1 | 11 |
Cushion collar |
1 | 20,21 |
O Gasket |
2 |
| 3 |
Dustproof seal |
1 | 12 |
O Gasket |
1 | 22 |
Hexagon nut |
1 |
| 4 |
Oil seal for shaft |
1 | 13 |
Wearing ring |
1 | 23 |
Adjustable lead screw1 |
1 |
| 5 |
Gland |
1 | 14 |
Piston seal |
2 | 24 | Pulled rod | 4 |
| 6 |
Guide sleeve |
1 | 15 | Piston | 1 | 25 |
Half snap ring |
2 |
| 7 |
O Gasket |
1 | 16 | End cover | 1 | 26 |
Baffle ring |
1 |
| 8 |
Rod cover |
1 | 17 |
Nut |
8 | 27 |
Rod baffle ring |
1 |
| 9 |
O Gasket |
2 | 18 |
Spring washer |
8 | 28 |
Adjustable nut |
1 |
Specification:
| Bores of Cylinder |
Φ40
|
Φ50
|
Φ63
|
Φ80
|
Φ100
|
Φ125 |
|
|
|
Power Fluid |
Filtered Oil | |||||||
|
Material of cylinder bareel |
Carbon steel STKM-13c/ tainless tubes SUS 304/AL Tube A6063TDS-T5 | |||||||
|
range of pressure(mpa) |
0.3-7.0 MPA(3-70kg/Cm2) | |||||||
|
speed (mm/sec) |
8~300(mm/sec) | |||||||
|
temperature(°C ) |
-10 ~ + 60 (°C ) | |||||||
|
Cushion stroke)mm |
25 | 25 | 25 | 25 | 30 | 30 | ||
|
Length of standard piston(PM) |
30 | 32 | 36 | 40 | 59 | 59 | ||
| Piston length when the stroke is between 1501-2500 mm | 60 | 65 | 65 | 80 | 120 | 120 | ||
Ordering Code
CFOB R D - 63 / 35 * 100 LB + Y
1 2 3 4 5 6 7 8
| 1 | Series |
MOB: Standard type MOD:Double Rods type |
| 2 | Magnetic |
Blank: No magnet Z:Magnet |
| 3 | Flxed Cushioning Type | Blank: No cushion D: cushions on both ends F: cushion on head cover B: cushion on end cover |
| 4 | Bore of Cylinder |
Φ40, Φ50, Φ63, Φ80, Φ100, Φ125 |
| 5 | Rod |
Φ20 Φ30 Φ35 Φ40 Φ50 Φ60 |
| 6 | Stroke |
Steel barrel(Φ30-Φ125) Max:4m Iron barrel(Φ40-Φ100) Max:2.8m Standard stroke:50,100,150,200,250,300,350,400,450,500,600,700,800,900,1000. |
| 7 | Cylinder Body Accessories | |
| 8 | Rod Accessories | |
Remark : The sizes of the heavy duty hydraulic cylinder can be customized as customers' requirement.
