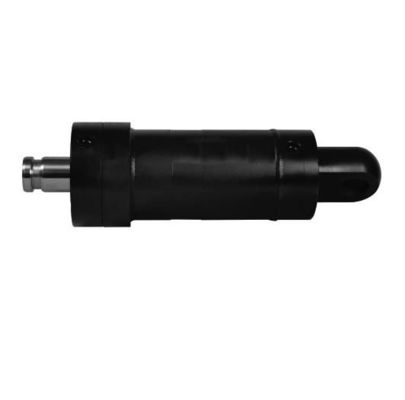

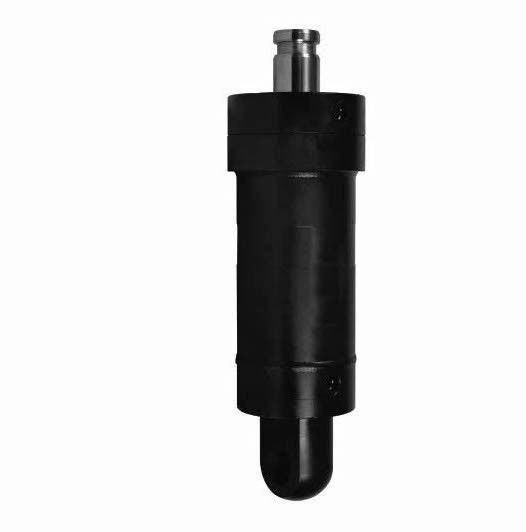

21 mpa Round Hydraulic Cylinder Big Heavy Duty Oil Cylinder High Clamping Force
Heavy Duty Hydraulic Cylinder Applications:
1. Engineering machine machinery
2. Overweight transportation machinery
3. Mining machinery
4. Construction machinery, agricultural machinery
6. Metallurgical machinery
7. Light industrial machinery
8. Automotive industry
9. intelligent machinery
| MO | Part name | QTY | NO | Part name | QTY | NO | Part name | QTY |
| 1 | Piston rod | 1 | 7 |
Piston Seal |
1 | 13 |
Front flange |
1
|
| 2 |
Dustproof seal |
1 | 8 |
End cover |
1 | 14 |
Guidance tape |
1 |
| 3 |
O Gasket |
1 | 9 |
Oil seal for shaft |
1 | 15 |
Cylinder tube |
1 |
| 4 |
O Gasket support ring |
1 | 10 |
Rod ladder seal |
1 | 16 |
Lock screw |
1 |
| 5 |
O Gasket |
1 | 11 |
Socket Head cup screw |
15 | 17 | ||
| 6 |
Piston |
1 | 12 |
Rod Cover |
1 | 18 |
Specification:
| Bores of Cylinder |
Φ125
|
Φ150
|
Φ180
|
Φ200
|
Φ225
|
Φ250 | Φ280 | Φ300 |
| Power Fluid | Filtered Oil | |||||||
| Material of cylinder bareel | Carbon steel STKM-13c/ tainless tubes SUS 304/AL Tube A6063TDS-T5 | |||||||
| range of pressure(mpa) |
1-21MPA(10-21kgCM2) |
|||||||
| speed (mm/sec) |
8~500(mm/sec) |
|||||||
| temperature(°C ) |
-30~+100 (°C) |
|||||||
| Length of standard piston(PM) | 60 | 60 | 70 | 70 | 70 | 70 | 70 | 90 |
|
Piston length when the stroke is between 1501-2500 mm |
120 | 120 | 140 | 140 | 140 | 140 | 140 | 150 |
|
Customized stroke is 2501-4000mm |
200 | 200 | 200 | 200 | 200 | 200 | 200 | |
Ordering Code
CHROA 125 / 60 * 100 Y + DM
1 2 3 4 5 6
| 1 | Series |
|
| 2 | Bore of Cylinder |
Φ125, Φ150, Φ180, Φ200, Φ225, Φ250, Φ280, Φ300 |
| 3 | Rod |
Standard Φ60 Φ80 Φ100 Φ125 Φ140 Φ160 Φ180 Φ200 Max Φ80 Φ100 Φ120 Φ140 Φ160 Φ200 Φ220 Φ250 |
| 4 | Stroke |
Steel barrel(Φ125-Φ300) Max:4m |
| 5 | Cylinder Body Accessories |  |
| 6 | DM |
Blank: Standard DM: DM type |
Remark : The sizes of the heavy duty hydraulic cylinder can be customized as customers' requirement.
